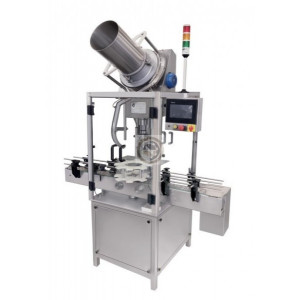

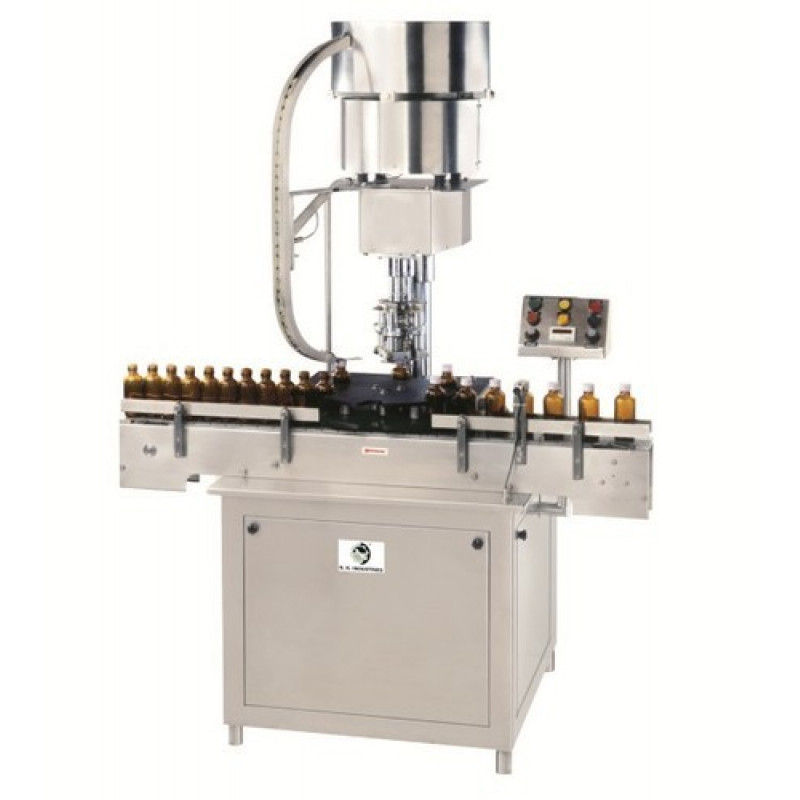

Automatic Single Head Ropp Capping Machine Manufacturer Kenya

The Automatic Single Head ROPP Capping machine Model NKCS-60R is exclusively designed by N.K Industries adopts single motor which is concise & synchronizes conveyor, star wheels, platform turret. Automatic Single Head ROPP Capping machine Model NKCS- 60R can deliver 50 Bottle per minute output depending upon container Diameter.

Salient Feature of Machines:

Single head ROPP capping machine have following inbuilt features

• Parts coming in contact with the vial / aluminum cap / exposed to the atmosphere are made out of stainless steel, good housekeeping and good manufacturing practice.
• Single motor synchronizes conveyor, star wheels and platform turret and speed can be varied by the % speed pot on operating panel.
• A Special clutch device is incorporated on the in feed worm and Star wheel system for stoppage of machine in the event, vial is over turned or over diameter.
• A photo sensing device stops machine automatically in the event, there is no aluminum cap in delivery chute.
• Sealing Pressure can be varied to suit different gauges and sizes of ROPP caps.
• Damage cap quantity can be reduced by adjusting the gap between upper and lower plate of orientation unit.
• Imported Gear Motor for Main drive.
• Imported Gear box for Orientation unit.
• Imported A.C. Frequency drives for Main drive.
• Digital Counter for counting number of sealed BOTTLE.
• “No Seal in Chute, Machine Stops System”

Machine Interlock:

• No bottle at in-feed Machine stop.
• Bottle jamming at in-feed Machine stop.
• Bottle jamming at out-feed Machine stop.
• No Cap in chute Machine Stop
• Door open Machine Stop (Possible with only with Glass Cabinet).
